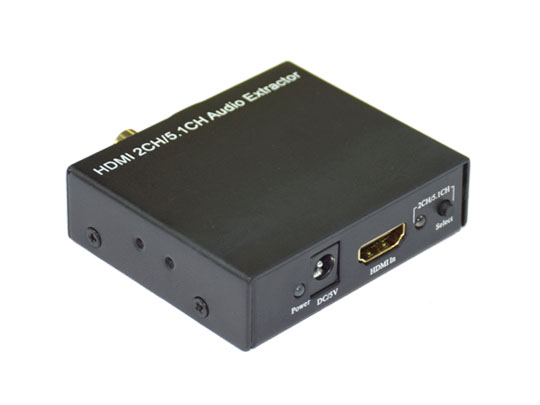

HDMI to HDMI + Optical Digital Coaxial Stereo Audio Extractor Converter Splitter including S/PDIF Optical Toslink, Digital Coaxial, and analog 3.5mm stereo output ports, allowing you to connect to the audio inputs of any AV receiver or amplifier. A built-in DAC allows simultaneous audio for HDMI as well as the three audio only outputs. This audio extractor supports decoding uncompressed digital LPCM 5.1 or 2 channels and compressed audio such as DTS Digital, Dolby Digital, etc. The HDMI signal Input to Output audio signal is unchanged.

Supports HDCP, HDMI 1.4V 4K and 1080p and 3D video formats. Features automatic cable input equalization and 2-Channel/5.1-channel selection. Also supports data rates up to 6.75Gbps, Color Depth up to 12-bit per channel (36-bit all channels), uncompressed audio such as LPCM, and compressed audio such as DTS Digital, Dolby Digital.

Features:
Supports 2-CH/5.1-CH audio switch, all 1080p and 3D formats, including 1080P@30hz,720p@59.94/60Hz/50Hz, bandwidth up to 225MHz.
Built-in DAC allows simultaneous audio for HDMI as well as the three audio only outputs.
Supports HDCPand CEC
Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth, 12bit per channel (36bit all channel) deep color
Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital
Input: 1x HDMI.

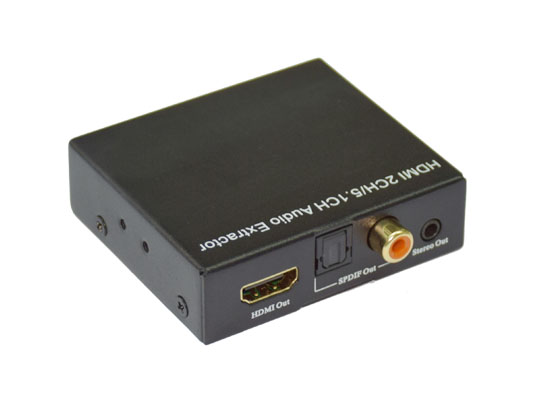

Outputs: 1x HDMI, 1x Digital Coaxial (S/PDIF), 1x Optical Toslink, 1x Stereo Analog 3.5mm Audio

Specifications:
Input Connector: HDMI 1.4v
Output Connector: HDMI (Female), Coaxial (S/PDIF), Optical Toslink,Stereo
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 6.75 Gbps total bandwidth
Resolutions: HDTV
Power Source: 5VDC
Switcher Size (WxHxD): 17* x 8 x 3.5 in
Interlaced Resolutions (50 and 60Hz): 480i, 576i, 1080i
Progressive Resolutions (50 and 60Hz): 480, 576p, 720p, 1080p
External Power Supply: 5V DC @2A - included
Power Consumption (Max): 2W
Operating Temperature: 32°F to +158°F (0°C to +70°C)
Operating Humidity: -10% to 80% RH (No Condensation)
Storage Temperature: 14°F to +176°F (-10°C to +80°C) Storage
Humidity: 5% to 90% RH (No Condensation)
Regulatory Approvals: FCC, CE, UL
Power Supply: FCC, CE, UL
