P/N:AV-HSC0501A

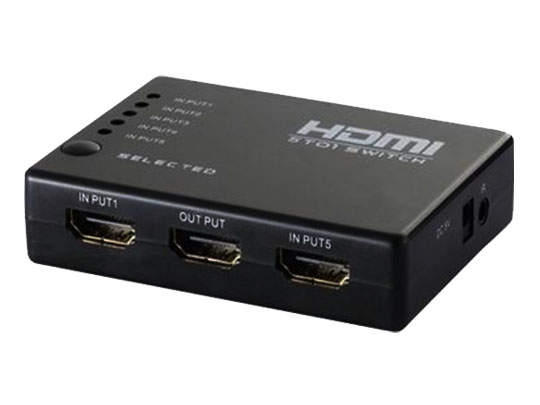

Mini 5x1 HDMI Switcher with IR&Remote 3D





1.0 INTRODUCTION
This is a kind of high performance MINI HDMI Amplifier Switcher. This kind of HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function. That is to say, as soon as the power supply of the source equipment is switched, this switcher will respond automatically. In addition, it is equipped with standard IR extender receiver: safe and convenient.
This kind of HDMI Amplifier Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox360 etc. The output sends the high definition audio/video signals to a high definition display.

1.1 INTELLIGENT FUNCTION
1) When supplied with power, this switcher will select the power-on source device depending on the sequence automatically (input1>inout2>input3>input4>input5)
2) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.
3)Once the source device is turned off or plugged out, the switcher will automatically select the next power-on source depending on the sequence automatically(input1>inout2>input3>input4>input5 )
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off, otherwise this switcher can not meet intelligent function.
2) When plugged in or out, this switcher is completely intelligent.

1.2 FEATURES
This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
 Multifunctional on switching : intelligent or mechanical
 IR extender receiver (included)
 IR remote(included)
 Supports HDMI1.3b
 Supports highest video resolution 1080p.
 Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
 Supports 12bit per channel (36bit all channel) deep color.
 HDCP pass-through.
 Supports uncompressed audio such as LPCM.
 Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby  True HD).
PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
 Main unit.
 Remote control
 IR extender receiver
 User’s Manual
 Power Adapter
