Features
Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
Equalized and re-clocked loop output
Auto video mode detection (3G/HD/SD)
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances
Simultaneous display with SDI /AV signals
Alternative audio output to analog 2CH
Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.

Specifications
SMPTE Standard               425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates     2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI in/out Resolution      SD: 480i@60, 576i@50  HD:720p@50/60, 1080i@50/60
                        3G:1080p@24/25/29.97/30/50/59.94/60
CVBS Output Resolution    PAL/NTSC-M

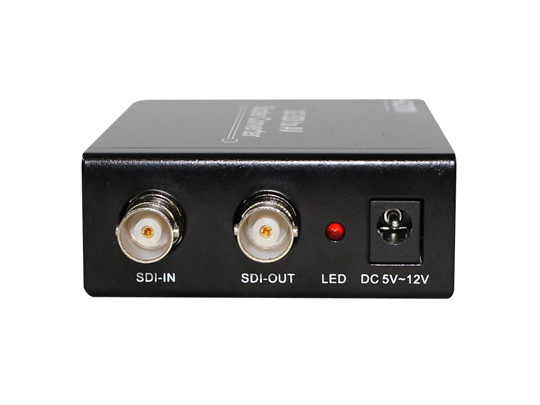

Input Port 1 x BNC (SD/HD/3G-SDI)

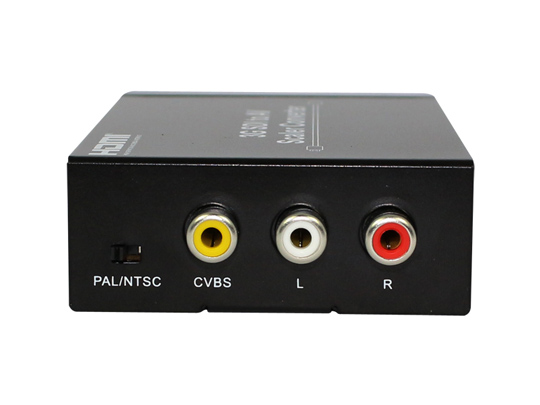

Output Port          1 x BNC (SD/HD/3G-SDI), 3 x RCA (CVBS,L/R)
Power Supply DC 5V -12V
ESD Protection Human body model ±8kV (air-gap discharge) ,
                                  ±4kV (contact discharge)
Dimension        95mm x 60mm x 25 mm
Weight   260g
Operating Temperature   0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature   -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity           20 ~ 90% RH (Non-condensing)
Power Consumption (Max)    5W

Package

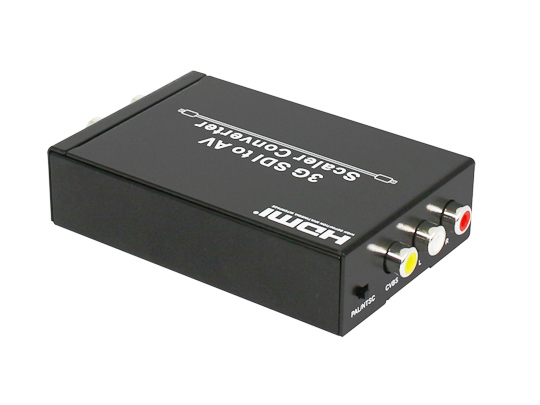

3G SDI to AV Sclaer Converter
5V DC Power Supply Adaptor
Operation Manual
