This machine is a high−performance presentation scaler and switcher. It accepts one of eight inputs: one DVI, two VGA, one composite video and four HDMI signals. The HDMI1, HDMI2 to bypass the input function, supports input resolutions up to 4Kx2K@30Hz, and HDMI3, HDMI4, DVI,
VGA1, VGA2, CV scales the video, supports output resolutions up to 1920x1080P@60Hz. It scales the video, embeds the audio, and simultaneously outputs the signal to HDMI and HDBaseT output, HDBaseT output transmission distances up to 328ft/100m (100m Version) through CAT6/7 cable, together with S/PDIF and stereo audio outputs. Flexible control mode diversity, through the front panel button, remote control, RS-232 and TCP/TP control.

Features
HDMI, HDCP and DVI compliant
The HDMI1,HDMI2 to bypass the input function, supports input resolutions up to 4Kx2K@30Hz
The HDMI3,HDMI4,DVI,VGA1,VGA2,CV scales the video, supports input resolutions :
HDMI: 480i to 1080p
VGA:1920x 1080P@60Hz, 1360 x 768P@60Hz, 1280 x 1024P@60Hz,
1024 x 768P@60Hz,1280 x 720P@60Hz,1280 x 768P@60Hz,
800 x 600@60Hz, 640 x 480P@60Hz, 720 x 400P@85Hz
CV: Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats
Supports transmission distances up to 328ft/100m (100m Version)  through CAT6/7 cable
Supports POE function
VGA video supports YPbPr and RGBHV
Picture Adjustment Settings
Supports embeds the audio
Supports S/PDIF and stereo audio outputs
Supports HDBaseT LAN Serving function
The USB and RS-232 for the firmware update
Supports RS-232, remote control, on-panel control and TCP/IP Control
Supports smart EDID management

Specifications

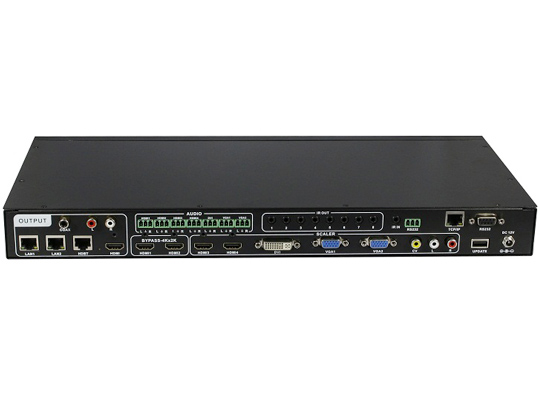

Input Ports                 4×HDMI,1×DVI,2xVGA,1xRCA ,
1×RS-232,1xRJ-45(Control),1x IR IN, 7x3P captive screw connector(3.81mm),
1xUSB
Output Ports          1×HDMI,2xRJ-45(LAN), 2xRCA,
          1xRJ-45(HDBaseT),8x IR OUT
Input Resolutions Support Up to 4Kx2K@30Hz
Output Resolutions Support  Up to 4Kx2K@30Hz(HDMI BYPASS)
        Up to 1920x1080P@60Hz(SCALES)
Control       IR , RS-232 , TCP/TP , Buttons
ESD Protection              Human-body Model:
± 8kV (Air-gap discharge)
± 4kV (Contact discharge)
Power Supply               12 V/2.5 A DC (US/EU standards,
CE/FCC/UL certified)
Dimensions                 440 mm (W)×200 mm (D)×45 mm (H)
Weight                    2300g
Chassis Material             Metal
Silkscreen Color             Black
Operating Temperature       0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature         −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity            20~90 % RH (non-condensing)
Power Consumption          14.5 W(Max)/1.8W(Standby)

Package Contents
ALL to HDMI with HDBaset 100m Cat6 Extender  1pcs

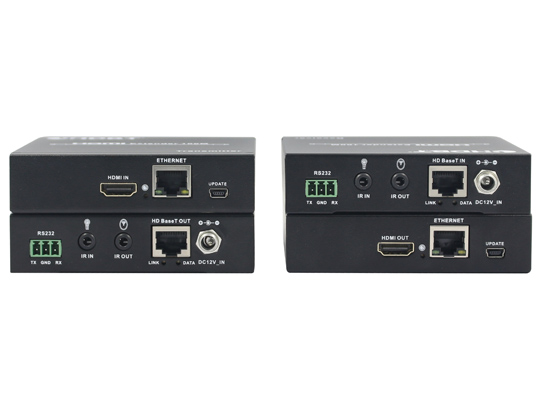

HDBaseT Receiver                    1pcs
12V/2.5A DC power adaptor             1pcs
Operation Manual                    1pcs
Wideband IR Tx cable                 9pcs
Wideband IR Rx cable                 2pcs
Scaler Switcher IR Remote               1pcs
Mounting ears                       2pcs
RS232 cable                         1pcs
