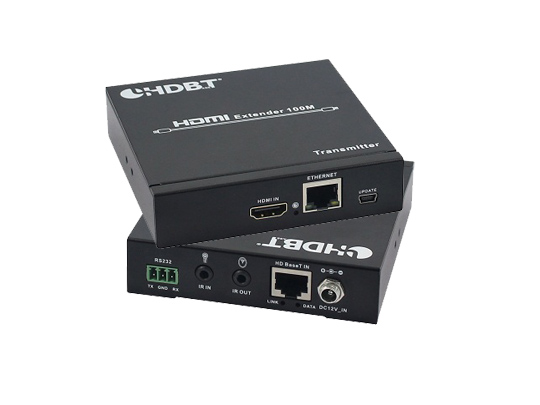

The AV Star's HDbaseT HDMI Extender is a tool which can extend your HDMI signal over 328fts/100meters to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by Internet cable. It also supports Transfer Bidirectional Infrared control signal \RS232 control signal\Internet signal together with the HDMI signal, so you can control the Source in the Sink side which is 328fts outside, also you can control the Sink in the Source side which is 328fts outside using the HDMI Extender.

Features
1.POE(Power Over Ethernet)function support, either TX or RX powered 12V@2.5A,another don’t need power form the DC jack. POE Power Consumption less than 10W. ※ See the description 1
2.Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distances transmission.
3.UTP cable termination follows the standard of IEEE-568B.
4.Transmission distance:
100 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
70 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit 4K x 2K@30Hz@24bit.
5.HDMI V1.4 HDCP1.4 supported.
6.Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
7.Transfer Bidirectional Infrared control signal together with the HDMI signal. ※ See the description 2.
8.Transfer Bidirectional RS232 control signal together with the HDMI signal. ※ See the description 3.
9.Transfer Bidirectional Ethernet signal together with the HDMI signal. ※ See the description 4.

Specifications
1.Frequency Bandwidth    2.97Gbps

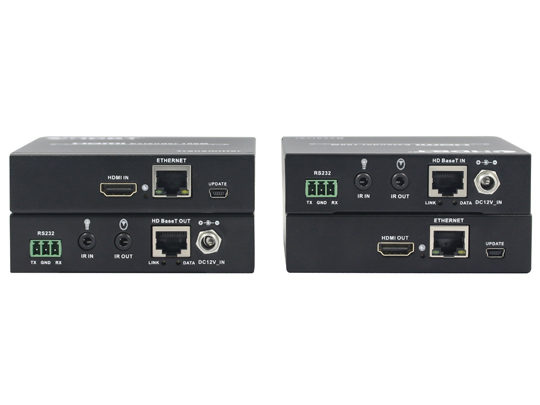

2.Transmitter Input/Output Ports  1x HDMI Female port/2xCAT6
1x IR Tx/1x IR Rx/1xPhoenix
3.Receiver Input/Output Ports  1xHDMI Female port/2xCAT6
                                1x IR Tx/1x IR Rx/1xPhoenix
4.Power Supply                    DC 12V 2.5A
5.ESD Protection                   ± 8kV (air-gap discharge)
Human Body Model:              ± 4kV (contact discharge)
6.Dimensions (mm)                100(W) X 100 (D) X 25 (H)
7.Weight                          320g x 2
8.Operating Temperature            0°C ~ 40°C / 32°F ~ 104°F
9.Storage Temperature            -20°C ~ 60°C / -4°F ~ 140°F
10.Relative Humidity               20~90% RH (Non-condensing)
11.Power Consumption (Max)         20W
