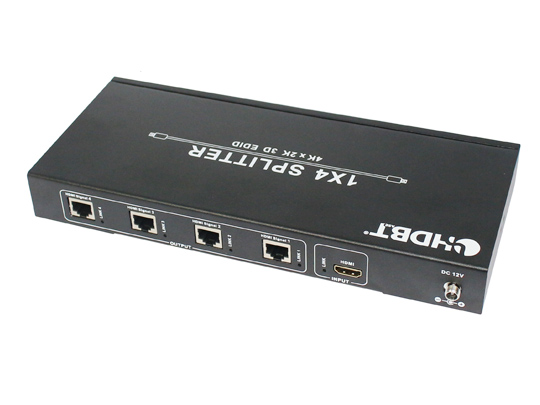

4 Port HDbaseT Splitter HDMI Extender Transmitter Over Cat5e/6 100M 3D 4Kx2K IR Control

Introduction

The AV Star's HDbaseT Splitter is designed to split and extend your HDMI signal over 328fts/100meters to a compatible display. It's adopting HDBaseT technology to convey HDMI signal via an Ethernet cable. It also supports transferring bi-directional infrared control signal/RS232 control signal/Internet signal together with the HDMI signal, thus you can control the Source at the sink side which is 328fts far away,  and you can also control the

Features

1.POE(Power Over Ethernet)function supported, the splitter powered by a 12V/5A adapter, the receivers don't need any extra power supply. POE Power Consumption less than 10W per channel.
2.Transmission distance:by using CAT6 UTP cable
100 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
70 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;  3D1080P@60Hz@36bit 4K x 2K@30Hz@24bit.
3.Transmission distance:by using CAT5E UTP cable
70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit 4K x 2K@30Hz@24bit.
4.HDMI V1.4 and HDCP1.4 supported.
5.Full HD supported: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
6.Transfer Bidirectional Infrared control signal together with the HDMI signal.
7.Transfer Bidirectional Ethernet signal together with the HDMI signal.

Specifications

1.Frequency Bandwidth   2.97Gbps
2.Splitter Input/Output Ports                                     3x HDMI Female port/5xCAT6

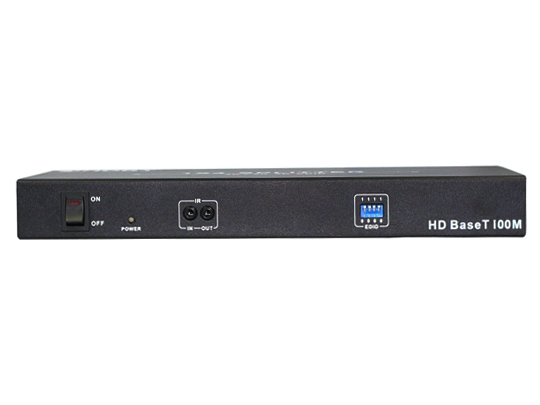

                                                                                        1x IR Tx/1x IR Rx/1x EDID
3.Receiver Input/Output Ports                                 1xHDMI Female port/2xCAT6
                                                                                         1x IR Tx/1x IR Rx/1xPhoenix
Power Supply                                   DC 12V 5A
ESD Protection                                                 ±8KV (air-gap discharge)
Human Body Model:                                      ±4KV (contact discharge)
Dimensions (mm Splitter:                             325W x 153 D x 31 H
Receiver:                                                    100W x 100 D x 25 H

Weight Splitter:                                                  1350g
Receiver:                                                              320g x 4（Optional）
Operating Temperature          0°C ~ 40°C/ 32°F ~ 104°F
Storage Temperature            20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity               20~90% RH (Non-condensing)

Package
1.  HD BaseT Splitter x1
2.  HD BaseT Receiver x4
3.  Wideband IR Tx x5
4.  Wideband IR Rx x 5
5.  12V5A DC Power Supply adapter x1
6.  Operation Manual x1
7.  Splitter Mounting ears x2
8.  Receiver Mounting ears  x8
