HDbaseT HDMI Extender Over Cat5e/6 100M 3D 4Kx2K IR Control
Introduction
The HDMI Extender over cat5e/cat6 is a tool for extending your HDMI signal over long distance to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by Internet cable. Its also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 100 meters outside, also you can control the Sink in the Source side which is 100 meters outside using the HDMI Extender.
Features
One pair as a full functional module, no need for setting.
POE(Power Over Ethernet)function support, either TX or RX powered 12V@2.5A,
another device will no need power form the DC jack. POE Power Consumption less than 10W.
Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distances transmission.
UTP cable termination follows the standard of IEEE-568B.
Transmission distance:
100 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
70 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit
4K x 2K@30Hz@24bit.
HDMI V1.4 supported.
HDCP compliant.
Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
Transfer Bidirectional Infrared control signal together with the HDMI signal.
Specifications
Frequency Bandwidth 2.97Gbps

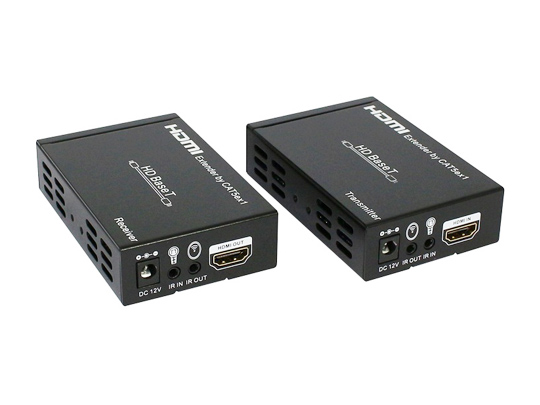

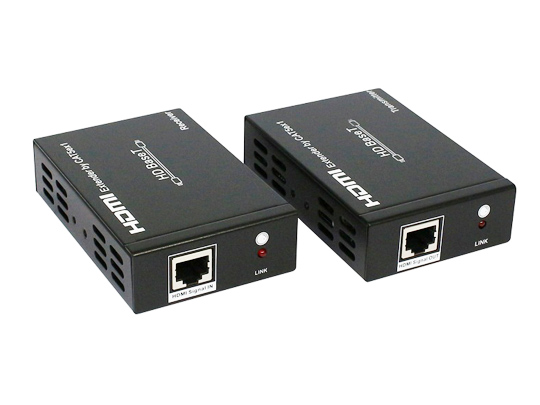

HDMI Transmitter Input/Output Ports 1x HDMI Female port/1 x CAT6
1x IR Transmitter/1x IR Receiver
HDMI Receiver Input/Output Ports 1 x HDMI Female port/1 x CAT6
1x IR Transmitter/1x IR Receiver
Power Supply DC 12V 2.5A
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 65(W) X 100 (D) X 25 (H)
Weight 200g x 2
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 20W
Package
HDMI Extender Transmitter -------------------------------------------------------- 1PC
HDMI Extender Receiver ------------------------------------------------------------ 1PC
IR Transmitter -------------------------------------------------------------------------- 2PCS
IR Receiver ----------------------------------------------------------------------------- 2PCS
12V2.5A DC Power Supply adapter ------------------------------------------------ 1PCS
Operation Manual --------------------------------------------------------------------- 1PC
|
