P/N:AV-SPD0402

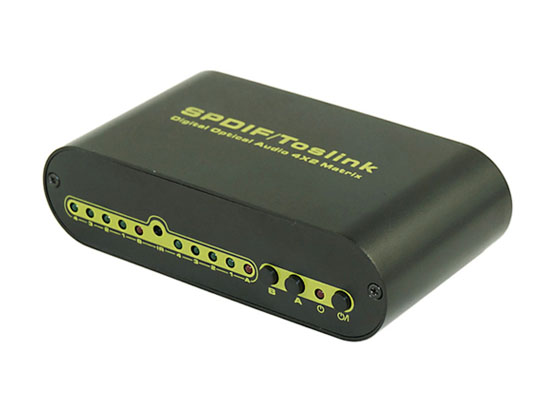

5.1 SPDIF TOSLINK Fiber Digital Optical Audio True Matrix 4x2 Switcher Splitter 4 In 2 Out





5.1 SPDIF TOSLINK Fiber Digital Optical Audio True Matrix 4x2 Switcher Splitter 4 In 2 Out

Description:
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
This SPDIF 4x2 Matrix could put the four sets of SPDIF output signal source and two SPDIF input device connected. It can be easily split or switched between four SPDIF signal and two SPDIF signal receiving equipment.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


Features:
4 Inputs / 2 Outputs for Optical SPDIF / TOSLink Audio Management; A True Matrix for Any Input to Any Output
Audio format support : DTS-HD/Dolby-true HD/LPCM2.0/DTS/Dolby-AC3/DSD
Support signal retiming
Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
The input control can through R/M and also can directly press the button.
Support last time working state memory when power off.
Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine, if the light for standby indication flashed, it shows that the output voltage from the power adaptor is too high and the adaptor needs to be changed.
LED status indication, it can tell us the working state of the device very easily.
No loss of quality
Installs in minutes
Need DC 5V power supply


Specification:
Support audio format:DTS-HD/Dolby-trueHD/LPCM2.0/DTS/Dolby-AC3/DSD
Peak wavelength:650nm
Max baud rate:16Mbps
Output cable distance:=40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current:100mA
Power adapter format input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1000mA
Operating Temperature range: (0 to +40)
Operating Humidity range:5 to 90%RH (No Condensation)


Package Include:
1x Optical Audio True Matrix 4x2

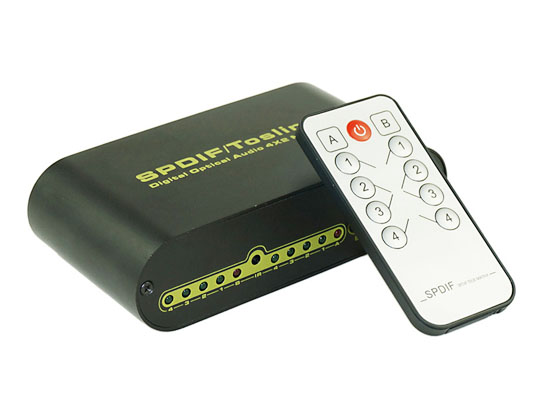

1x Remote Control
1x 5V DC Power Adapter
1x User Manual
