Introduction

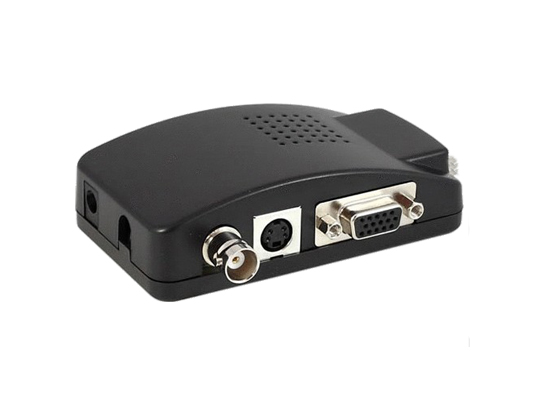

BNC to VGA Composite Video and S-Video to VGA converter allows your DVR or CDD camera to be displayed on standard computer monitor, converting a computer monitor or LCD into a CCTV monitor.

The connection on the back of DVR and CDD camera is BNC female, which is to be connected to the BNC input of it. The output video quality is better than the direct VGA output from DVR.This Vedio Converter is widely used in Security Area Detection,Medical Equipment and Family Vedio Device field.It used lastest digital image technical to convert all different resolutions vedio signal to VGA signals.It supports from 800 X600 to 1920 X1200 resolutions.And it provides you perfect images enjoy.

Features

1. Supports PAL/NTSC/SECAM

2.Output resolution: up to 1920X1200

3.Brightness, Contrast, Sharpness, Saturation, Tint, HP(Horizontal position), VP(Vertical position)

4.OSD

5.Freeze

6.Digital comb filter, no more cross color

7.3D motion adaptive de-interlacing

8.Standard VGA output works with all standard monitor

9.5V/1A AC-DC Power Adapter

Specification

1.Input/Output

Input— 1xBNC, 1xS-Video, 1xVGA

Output—1xVGA

1.Output resolution

800X600–60Hz, 800X600–75Hz,

1024X768–60Hz, 1280X1024–60Hz,

Wide Screen Mode:1440X900–60Hz, 1680X1050–60Hz,

1920X1080–60Hz,  1920X1200–60Hz

3. Input format

BNC/SVideo Input:

Auto-Detect PAL, NTSC, SECAM

VGA Input: BY PASS

Package

BNC to AV x1

S-Video Cable x1

DC 5V1A x1

User Manual x1
