INTRODUCTION

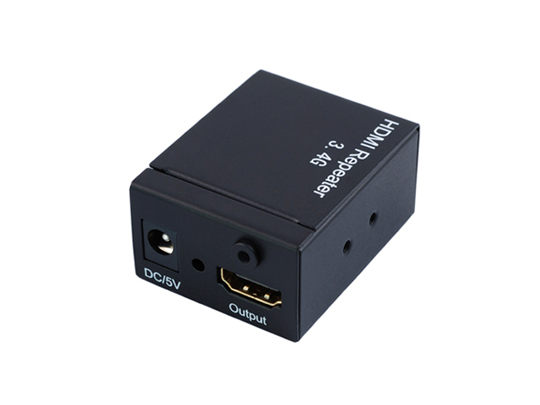

This is a kind of Supreme HDMI Repeater. It extends the length of HDMI cable up to 35M for 3.4G Video Amplifier Bandwidth by regenerating the HDMI signal before it sends the outputs to the HDMI monitor or projector. Meanwhile, according to the length of HDMI cable the special designed EQ can be adjusted to reach the best transmission function.
This HDMI Repeater adopts the iron shell for better EMI elimination and it will clean out the digital noise (sparkles) in your picture. With the unique designed structure, this repeater can be fixed up with the donated nogs in “L” shape.

This repeater compatible well for HD-DVD,SKY-STB, PS3, Xbox36etc.  It offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

1.1 FEATURES
This kind of the HDMI Repeater has many features that enable it to perform in a superior manner. Among those features you will find:
 Supports HDMI1.3b
 Supports highest video resolution 1080p.
 Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
 Supports 12bit per channel (36bit all channel) deep color.
 HDCP pass-through.
 Iron Shell for better EMI elimination.
 Supports uncompressed audio such as LPCM.
 Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）.

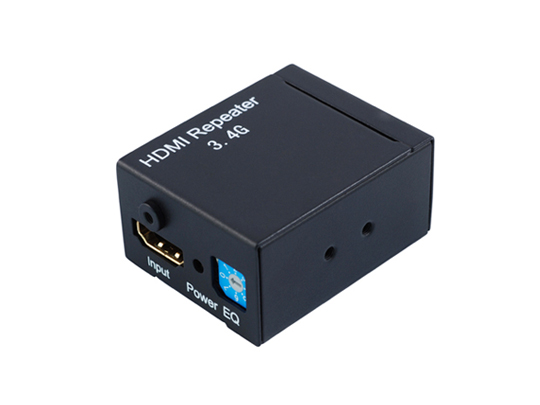

 8 levels of equalization settable by turning EQ from 0 to 7, so that support different length of HDMI cable between 1m to 35m.
 Unique designed structure for better connection.

Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
 HDMI Repeater
 Two “L” shape nogs
 One nut
 User’s Manual
