Introduction

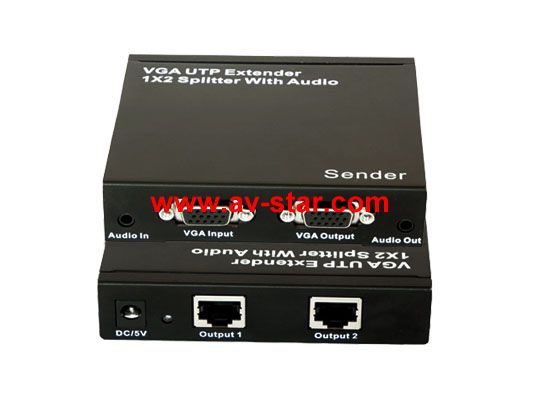

This VGA UTP Extender 1X2 Splitter with Audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal into the two identical outputs simultaneously. Each receiver by Cat5 x1 works with the Sender as a full functional module by receiving the distributed signal from the sender and transmitting to displays individually. Only by the most inexpensive UTP cable with cross stand inside, the full functional module extend the VGA display max up to 300 meters.

It offers solutions for VGA retail and show site and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES
This device has many features that enable it to perform in a superior manner. Among those features you will find:
 Extends VGA video and stereo audio signal max up to 300m over one UTP cable with cross stand inside.
 Adjusting GAIN and PEAK to adapt for the different length of UTP cable.
GAIN: Brightness adjustment.
PEAK: Skew adjustment.
 Supports resolution max up to 1920x1200.
 Dual output at local unit: 1 x VGA output for local site, plus 2 x UTP output for remote site.
 Works with monitors, projectors, HDTV, and flat panels.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1) VGA UTP Extender 1X2 Splitter
2) User’s Manual
3) One or two Receivers (Depending upon the requirement of customers)
4) One piece of 5V@2A DC Power Supply for VGA UTP Extender 1X2 Splitter
5) One or two pieces of 5V@2A Power Supply for Receivers
