INTRODUCTION

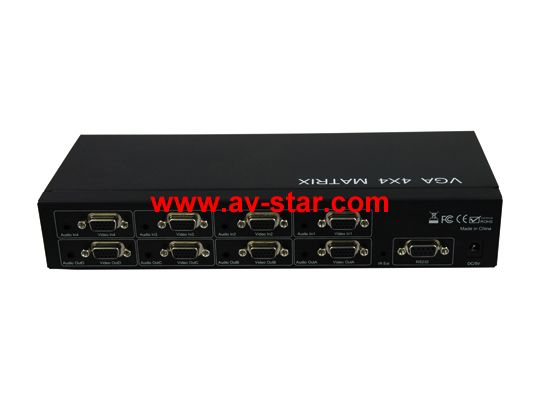

The VGA Switch Splitter routes high quality VGA video and stereo audio from any
of four VGA and audio sources to any of four VGA displays and audio receivers.
Four outputs give you the choices of sending audio and video signals up to four
displays in any combinations. Any four to any four true matrix switching allows for
maximum versatility for integrated systems. It eliminates the need to disconnect
and reconnect sources to a display equipped with one input. It works with a wide
variety of VGA sources such as computers, security cameras and DVRs.
. Every source is accessible at all times by any display by selecting it with an IR
remote,front panel buttons or through RS232 port.
1.1 FEATURES
This product has many features that enable it to perform in a superior manner.
Among those features you will find:
Allows any VGA display with audio to view any source with audio at any time
Allows any source with audio to be displayed on multiple displays with audio at
the same time
Each display's inputs can be switched with the IR remote control, front panel
buttons or through RS232
Supports highest video resolution 1920x1200,1080p at 60Hz.
Supports highest video Amplifier Bandwidth to 500MHz

3.0 Package Contents
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1) Main unit.
2) 5V/2A DC Power Supply.
3) Remote Control.
4) IR extender (Infrared Extender).
5) User Manual.
