The HDMI SWITCH SPLITTER Matrix routes high definition video in multiple resolutions up to 4K plus multichannel digital audio from any of the four HDMI sources to two displays.

Features
Four HDMI input signals switched or split to two HDMI sink devices.
Output A is with audio output through SDPIF and R/L Stereo.
Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio
modes selectable.
Supports 3D.
Supports 4K x 2K.
With HDMI-CEC function.
Supports deep color 30bit, 36bit.
Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD.
Supports signal retiming.
Supports input up to 15 metres (AWG24 HDMI standard cable length) output up
to 20 metres AWG24 cable length.

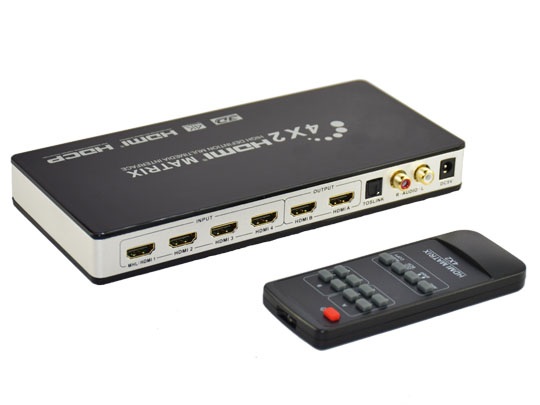

Inputs can be switched with the IR remote control, also can be controled by two
buttons.
Specifications
MHL interface RCP function, OUT A supports RCP function. Through the TV
remote control to realize the control of the mobile device and matrix switch
(mobile devices should support RCP function and TV support CEC function).
MHL/HDMI two working mode. Two inputs combined in one, effectively reduce
the input ports.
It can come back to the return to default input 1 when restart or reset.

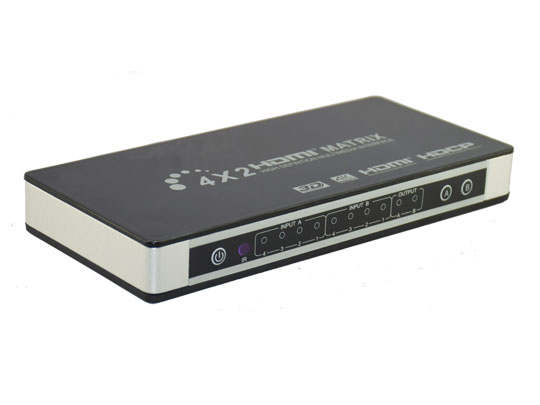

LED indicator: When any one of the input of sources is selected, the relative
input LED indicator will be on. When either of the output is selected, the relative
output LED indicator will be on.
No loss of quality.
Install in minutes.
Need DC 5V/3A power supply.
HDMI resolution.............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format........................24 bit/deep color 30bit, 36bit, 48bit
Support audio format..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output..........................................................SPDIF and 3.5mm stereo
Max transmission bandwidth...........................................................340MHz
Max baud rate...............................................................................10.2Gbps
Input/Output TMDS signal....................................................0.5~1.5Volts p-p
Input/Output DDC signal.....................................................5Voltsv p-p(TTL)
Input cable distance...............................≤15m AWG24 HDMI standard cable
Output cable distance.............................≤25m AWG24 HDMI standard cable
Max working current........................................................................1300mA
Power adapter format.........Input:AC(50Hz,60Hz)100V-240V;Output:DC5V/3A
Operating Temperature range...................................................(-15 to +55℃)
Operating Humidity range...............................5 to 90%RH(No Condensation)
Dimension(LxWxH)..............................................................218x106x28mm
Weight................................................................................................318g
