1.4v HDMI Matrix 8x8 3D 4Kx2K EDID Control

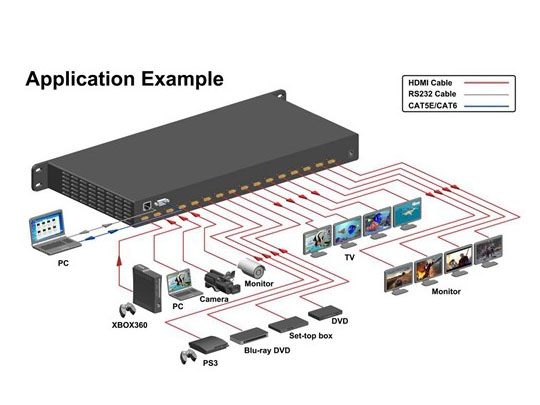

The 8x8 HDMI Matrix with EDID control connects eight HDMI sources to eight displays. This matrix provide eight HDMI outputs and each HDMI output is supporting 1080p Full HD up to 4K plus all 3D formats and supporting independent EDID control. AV-HMX0808M works with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel.

2.Features
HDMI V1.4 supports: 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
Deep Color support 48/36/30/24-bit
Supports LPCM 7.1CH, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio transmission
Allows any source to be displayed on multiple displays at the same time
Allows any HDMI display to view any HDMI source at any time
8-input ports support independent EDID
Supports RS-232, remote control, on-panel control and TCP/IP Control

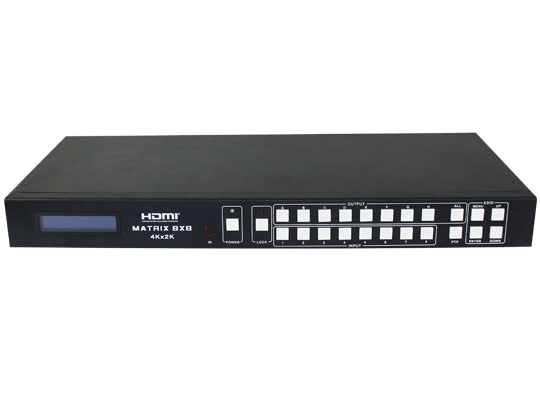

Front-panel LCD display for status feedback

3.Package Contents
8x8 HDMI Matrix--------------------------------------------------------------1pc
12V/3A DC power adapter--------------------------------------------------1pc
Operation Manual------------------------------------------------------------1pc
HDMI Matrix IR Remote-----------------------------------------------------1pc
Mounting ears-----------------------------------------------------------------2pc
RS232 cable--------------------------------------------------------------------1pc
4.Specifications

Video Bandwidth             297 MHz
Support Video Resolution      480i,576i,480p,576p,720p,1080i,1080p
　　　　　　　　　　　　　　　　@24/30/50/60Hz, 4K@30Hz, 1080P3D@60Hz

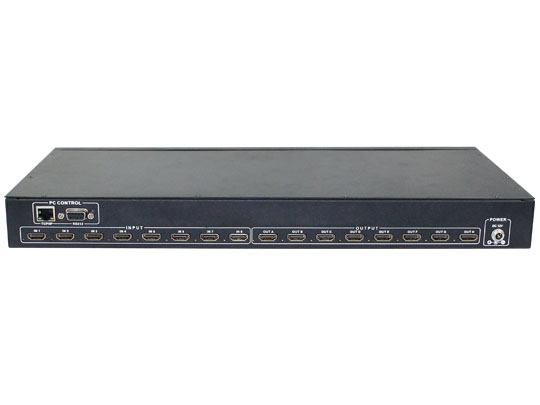

Input Ports                  8×HDMI, 1×RS-232, 1xRJ-45(Control)
Output Ports                8×HDMI
ESD Protection               Human-body Model:
　　　　　　　　　　　　　　　± 8kV (Air-gap discharge)
　　　　　　　　　　　　　　　± 4kV (Contact discharge)
Power Supply                12 V/3 A DC (US/EU standards,
　　　　　　　　　　　　　　　　CE/FCC/UL certified)
Dimensions                 440 mm (W)×200 mm (D)×45 mm (H)
Weight                     2310 g
Chassis Material              Metal
Silkscreen Color              Black
Operating Temperature        0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature          −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity             20~90 % RH (non-condensing)
Power Consumption           23 W(max)/0.5w(Standby)
