1.4v HDMI Matrix 4x2 3D 4Kx2K

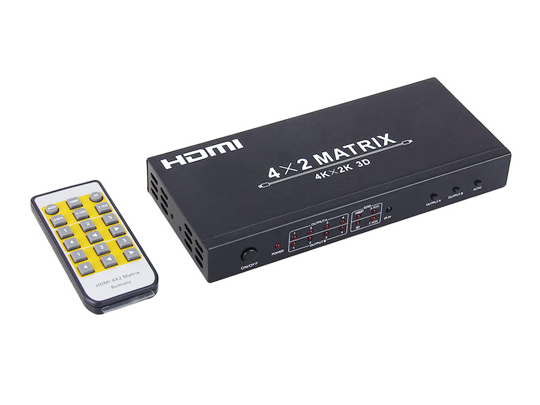

HDMI Matrix 4 x 2 is a 4-by-2 DVI/HDMI matrix with 4Kx2K. It allows any source (Blue-ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the two displays simultaneously, no matter the source is HDCP or not. Extra infrared receiver port is supplied for remote control. AV-HMX0402M offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments, etc.

Features:
·Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
·3D HDMI 1.4a video format support.
·3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.
·Supports deep color up to 48-bit per pixel.
·HDCP 1.4 support (input), HDCP v1.4a protocol compliant (output).
·Supports the reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR
·Full colorimetry including sYCC601,Adobe RGB,Adobe YCC601,xvYCC extended gamut color
·Operates for TMDS clock frequencies up to 300MHz

Specification:
·Frequency Bandwidth: 2.97Gbps

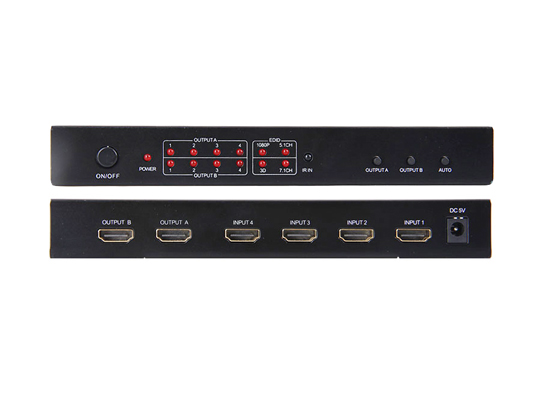

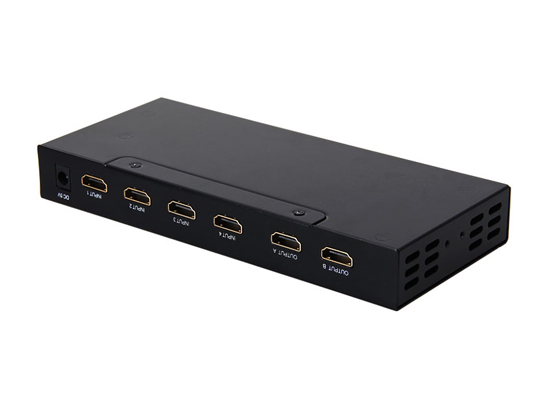

·Input Ports: 4 x HDMI Female input ports
·Output Ports: 2 x HDMI Female output ports
·Power Supply: DC 5V 1A
·ESD Protection Human Body Model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
·Dimensions (mm): 85(W) X 192 (D) X 26 (H)
·Weight(g): 450
·Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
·Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
·Relative Humidity: 20 ~ 90% RH (Non-condensing)
·Power Consumption (Max): 5W

Package Included:
·1xHDMI Matrix
·1x5V1A DC Power Supply adapter
·1xOperation Manual
·1xRemote control
