1.4v HDMI Matrix 2x2 3D 4Kx2K

Introduction

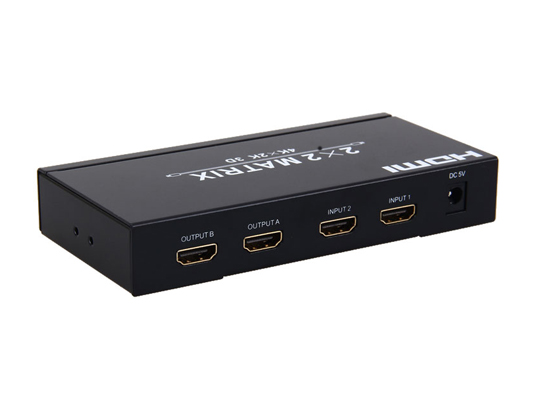

HDMI Matrix 2 x 2 is a 2-by-2 DVI/HDMI matrix with 4Kx2K. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the two displays simultaneously, no matter the source is HDCP or not. Extra infrared receiver port is supplied for remote control. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments, etc..
Features
1. Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
2. 3D HDMI 1.4a video format support.
3. 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.
4. Supports deep color up to 48-bit per pixel.
5. HDCP 1.4 support (input), HDCP v1.4a protocol compliant (output).
6. Supports the reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.
7. Full colorimetry including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color.
8. Operates for TMDS clock frequencies up to 300MHz.

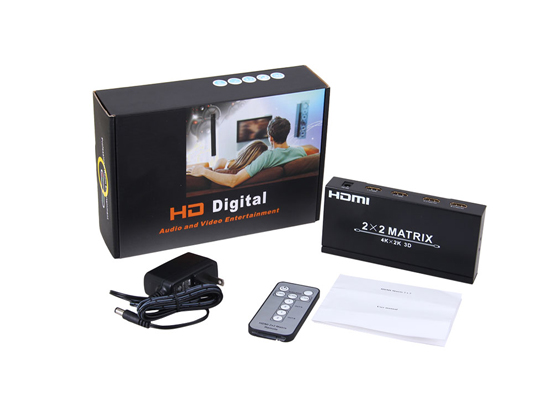

Package
1. HDMI Matrix ------------------------------------------------------------------------------ 1PC
2. 5V1A DC Power Supply adapter ------------------------------------------------------- 1PC
3. Operation Manual ------------------------------------------------------------------------- 1PC
4. Remote control------------------------------------------------------------------------------1PC
Specifications
1. Frequency Bandwidth               2.97Gbps

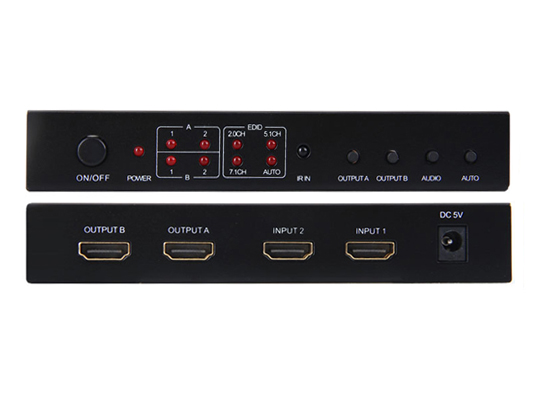

2. Input Ports                         2 x HDMI Female input ports
3. Output Ports                        2 x HDMI Female output ports
4. Power Supply                       DC 5V 1A
5. ESD Protection Human Body Model:    ± 8kV (air-gap discharge)
± 4kV (contact discharge)
6. Dimensions (mm)                   70(W) X 145 (D) X 25 (H)
7. Weight(g)                          300
8. Operating Temperature              0°C ~ 40°C / 32°F ~ 104°F
9. Storage Temperature              -20°C ~ 60°C / -4°F ~ 140°F
10. Relative Humidity                   20 ~ 90% RH (Non-condensing)
11. Power Consumption (Max)         5W
