Introduction
The 4K HDMI Extender over Single Cat5e/6 extends high definition video and audio signals, at a distance of up to 164ft/50m over a single Cat5e/6 cable. With only one cost effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby TrueHD audio is supported and compatible with the extender.
Features:
Each set includes one Sender and one Receiver.
Use single UTP LAN cable（Cat 6)to substitute HDMI cable to achieve long transmission distance, the UTP Cable follows the standard of IEEE-568B.
Transmission distance extends up to 50 meters under 4K2K@30Hz.
Supports lossless compressed digital audio: Dolby True-HD, DTS-HD Master Audio.
Transmit Digital Audio and Video over the CAT6 cable with zero signal loss.
Data transfer speed 10.2 Gbps.
EDID management
Wideband IR from 20~60hz
DC 5V power supply.
Specifications:
Operating Temperature Range: -5 to +35℃(+23 to +95℉)
Operating Humidity Range: 5 to 90%RH (No Condensation)
Input Video Signal:0.5-1.0 Volts P-P
Input DDC Signal: 5 volts p-p(TTL)
Support Video Format: DTV/HDTV:480P/576I/720P/1080i/1080P/4K2K@30Hz/3D video/Bi-directional IR 20~60hz
Video Output:HDMI ,HDCP
Support Audio Format :DTS-HD Master Audio、Dolby true-HD etc
Transmission Distance: 4K2K@30Hz 8-bit 50m(Maximum) over single CAT5E/6 /24AWG/Solid
Power consumption :4 watts(Maximum)
Dimension (L×W×H): 81.5x43.5x23mm
Net Weight :250g(Pair)

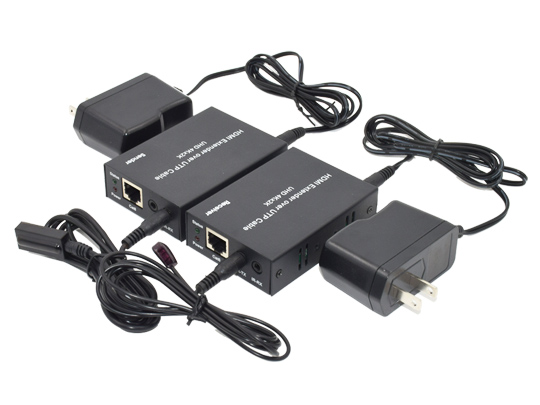

Package Contents:

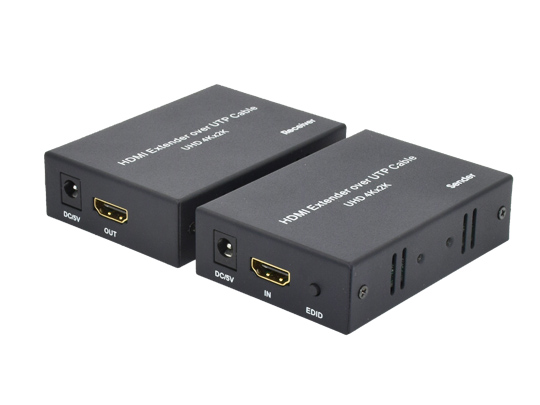

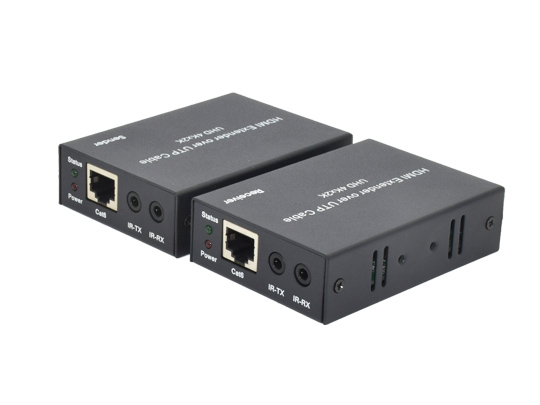

1)Main Unit: Sender & Receiver
2)DC 5V 1A x2

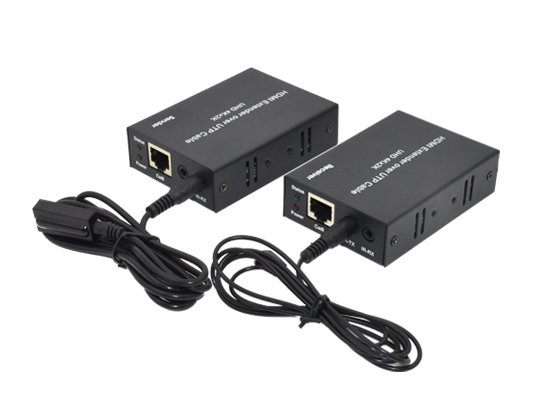

3)IR Emitter x1 IR Receiver x1
4)Operating Instructions
|
