Introduction:
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.

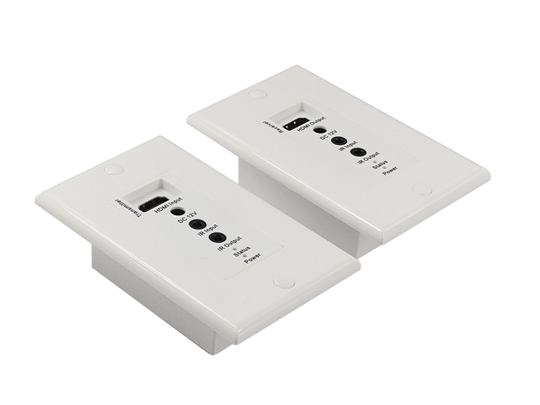

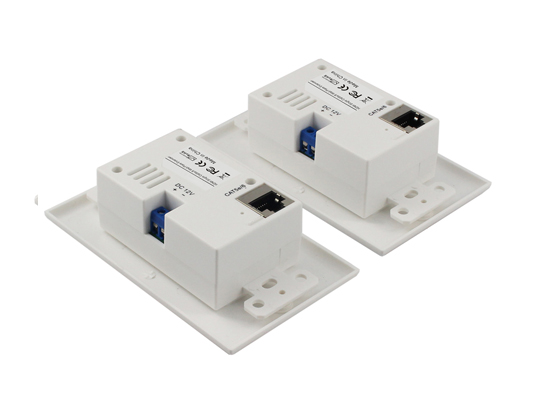

Single Cat5e/6 Wall Plate Extender includes transmitter and receiver. Transmitters
combine HDMI video, audio and control signals, then transmit them through single
CAT5e cable. Receivers get these signals, separate signals and rebuild video, audio
and control , output through HDMI interfaces. It also supports bi-direction remote
IR(RX-TX and TX-RX), power over. This product can achieve all functions through single
CAT5e cable. Extending distance is 50 meters for 1080p 60Hz HD signal.

Features:
Exending distance is 170ft(50 meters) at resolutions 1080P 3D or 1920x1200 60fps,
and at 1080i/720P through single CAT5e cable.
Supports audio formats, Dolby True HD, DTS-master, etc.
Supports 3D signals (all 7 formats), such as Frame Packing, Side-by-side,Top-to-Bottom, etc.
SupportsVESA DDC and hot swap technology(HPD).
Supports power over UTP cable, single 12V DC power supply from any side of TX or RX.
Bi-direction remote IR(RX-TX and TX-RX).
Compatible with DVI 1.0.
Supports cascade to enhance extending distance

Package Contents:
Transmitter x1
Receiver x1
IR blaster x2
IR receiver x2
DC 12V/1A adapter x1
User manual x1
