HDMI Extender 50M over single cat5e/6 with IR POE version

INTRODUCTION
The HDMI Extender over Single Cat5e/6 with IR extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable.  With EDID management, which allows and encourages source and display “handshake” for seamless integration.  With only one cost effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances.  Deep color video, DTS-HD or Dolby TrueHD audio is supported and compatible with the extender.  In addition, the extender is also equipped with bi-directional IR pass-through which allows for source or display control.

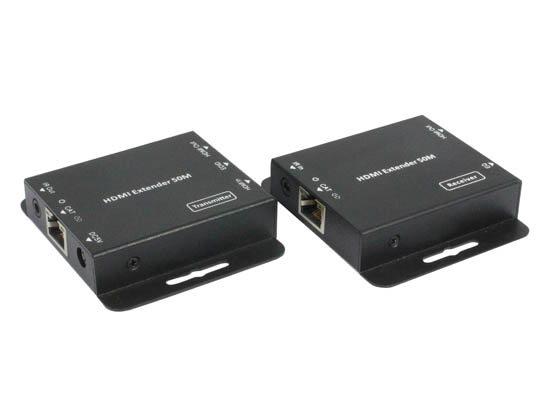

The extender includes two units: transmitting unit  and receiving unit.  The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable.  The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR control signals.  The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.

FEATURES
Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
Support copy EDID from receiver display or loop out display.
Allows for cascading via additional HDMI loop out port.
Support Power over cable fuction.
Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable.
Works with HDMI and HDCP compliant devices.
Supports up to 1080p High Definition resolution.
Compact design for an easy and flexible installation.

SPECIFICATIONS
Video Bandwidth:  Single-link 165Mhz [ 4.95Gbps]
Video Support:  480i/480p/720p/1080i/1080p @60
Audio Support:  Surround Sound (up to 7.1 ch) or stereo digital audio
Transmission Range:  HD [1080p 24-bit color] – up to 50m [164ft]
Input TMDS Signal:  3.3 volts
Input DDC Signal:  5.0 volts/P-P
ESD Protection:  Human Body model: +/- 8 kV (air-gap discharge)
+/- 4 kV (contact discharge)

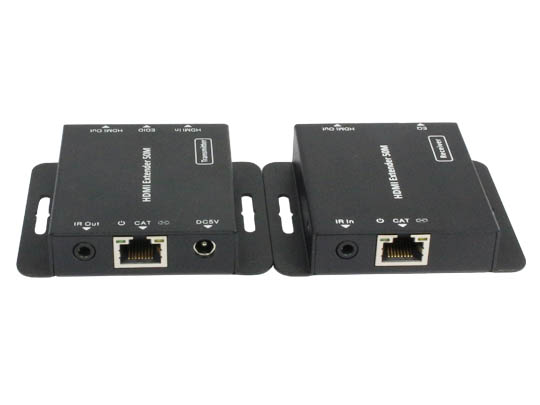

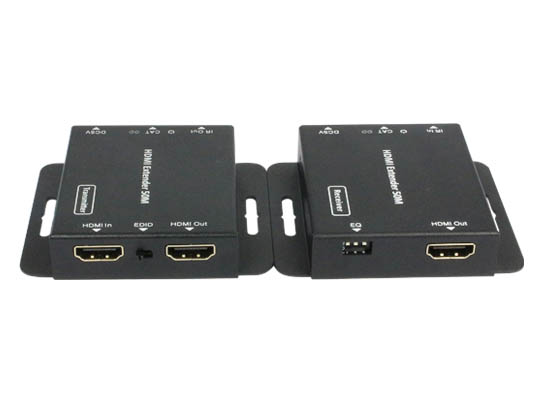

HDMI connector:  Type A 19 pin female
RJ-45 connector:  WE/SS 8P8C
3.5mm connector:  (TX and RX) IR Receiver/IR Blaster

MECHANICAL SPECS
Housing:  Metal enclosure
Power Supply:  (1) 5V1A DC
Power consumption:  1.5 watts (TX); 1.0 watts (RX)
Operation temperature:  32~104 °F
Storage temperature:  -4 ~140 °F
Relative humidity:  20~90 % RH (no condensation)
Package Contents:
1.HDMI Transmitter          1pcs
2.HDMI Receiver                1pcs
3.Windband IR Tx cable    1pcs
4.Windband IR Rx cable     1pcs
5.5V1A DC Power Supply Adaptor for Transmitter   1 pcs
6.Product Manual         1pcs
