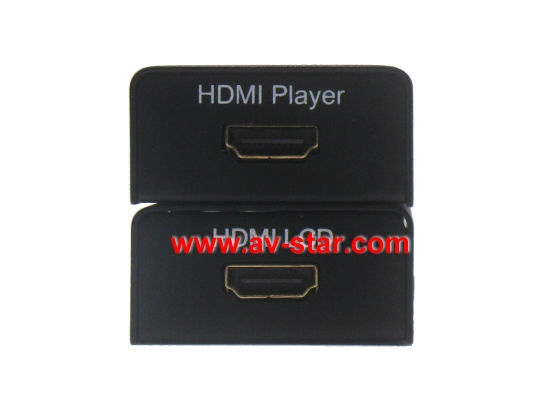

The HDMI Extender by CAT-5e/6 uses two pieces of UTP cable with cross stand inside to extend the HDTV display up to 50 meters for 1080p  It not only breaks the limitation of the HDMI cable transmission length，but also CAT-5e/6 has more f5exibility and convenience in cable construction.

It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.

It offers solutions for residential consumers: HDTV retail and show site, HDTV, STB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

1.1 BENEFITS
1) The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves. However CAT-5e/6 cables are available everywhere and be processed easily by the user or installer.

2) Because the header of the long HDMI cable is big, using it must in hidden method. What’s more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However, CAT-5e/6 cable has no such problems.

3) Using this Extender together with UTP cable with cross stand inside, the transmission distance can be up to 60 meters for 1080p. For the general HDMI cables, they must be customized when the length is over 10 meters.

1.2 FEATURES

This HDMI Extender has many features that enable it to perform in a superior manner.  Among those features you will find:
 One pair as a full functional module, no need of setting.
 CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
 Follows the standard of IEEE-568B.
 Transmission distance can be up to 50 meters for 1080p while using UTP cable with cross stand inside
 Supports HDMI1.3.
 Supports highest video resolution 1080p.
 Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
 Supports 8bit per channel (24bit all channel) deep color.
 HDCP pass-through.
 Supports uncompressed audio such as LPCM
 Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）.
