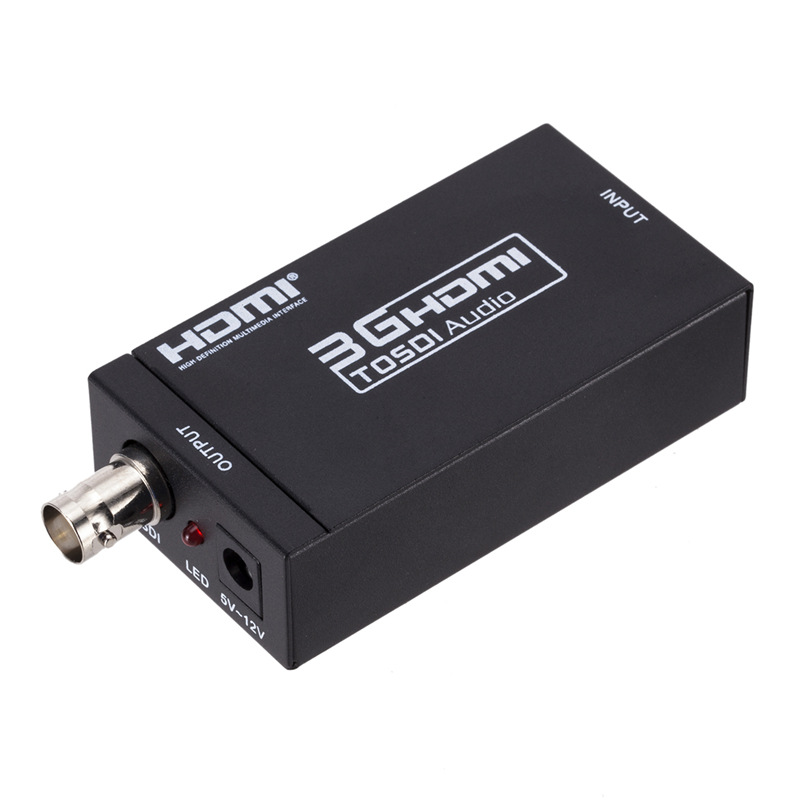

The HDMI to SDI converter allows HDMI signal to be shown on SD-SDI, HD-SDI and 3G-SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your HDMI signal while giving you the ability to display your work on SDI displays.

Features:

Shows HDMI source on SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
Supports HDMI input timings: 480i/59.94, 576i, 720p/50/59.94/60, 1080i/50/59.94/60, 1080p/23.98/24/25/29.97/30/50/59.94/60.
Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note: Do Not support Broadcast Standard.


Specifications:

ESD Protection Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
Dimension: 80mm x 41mm x 25 mm
Weight: 150g
Power Consumption (Max):5W
