INTRODUCTION

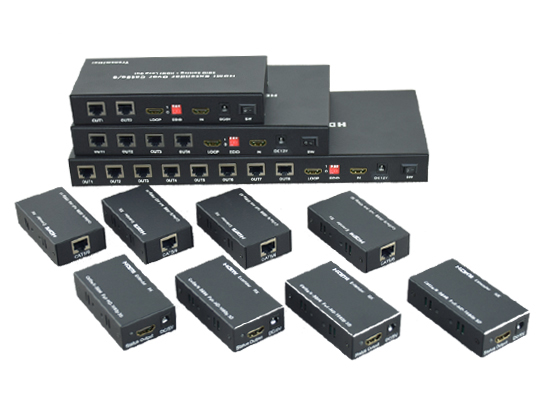

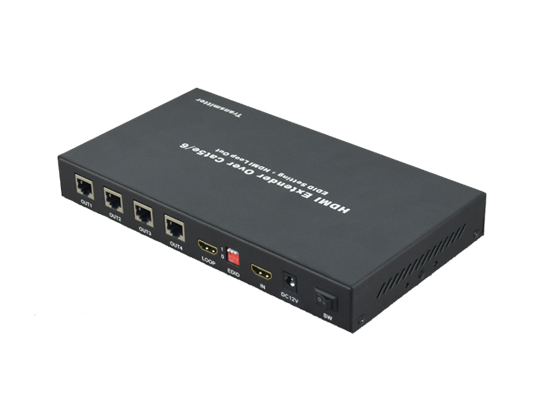

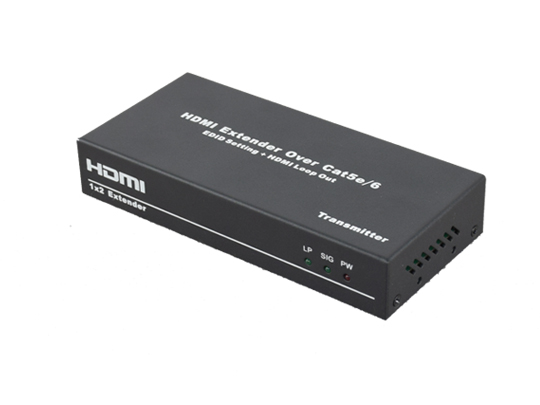

This HDMI Splitter is an HDMI splitter with Two RJ45 outputs. It distributes the input of the HDMI signal into the Two identical outputs simultaneously. Two HDMI Extender Receivers by Cat5 x1 receive the distributed signal from the splitter and transmit to displays individually. Each receiver works with the splitter as a full functional module. Only by the most inexpensive UTP cable with cross stand inside the full functional module extend the HDTV display up to 50 meters for 1080p and 3D. With EDID management,you can copy EDID from hdmi loop out.

This HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES
This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
 Easy to Use: Install in seconds, no need of setting.
 One pair as a full functional module,
 One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
 Follow the standard of IEEE-568B.
 Transmission distance can be up to 50 meters for 1080p using UTP cable with cross stand inside.
 Supports HDMI1.3
     Support 3D
 Supports highest video resolution 1080p.
 Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
 Supports 8bit per channel (24bit all channel) deep color.
 Supports uncompressed audio such as LPCM
     Support EDID management
     Support HDMI Loop out,which can cascading hdmi ports

SPECIFICATIONS
HDMI resolution …………………………................3D /1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………….......................24bit/deep color 30bit,36bit
Support audio format………………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………………..2250MHz
Max baud rate……………….................................................................................................6.25Gbps
Input/Output TMDS signal …………...............................................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ………………………………………………...................5Volts p-p (TTL)
Input cable distance..…..........................................................≤10m AWG26 HDMI standard cable
Output cable distance………………………………………….............................≤50m CAT6 cable
Max working current………………………………………………………………5V/800MA(2PORT)
                                                                                                                                  5V/1700MA(4PORT)
                                                                                                                                12V/1500MA(8PORT)
Power adapter format..Input: …………….........................................AC (50HZ, 60HZ) :100V-240V
Operating Temperature range……...............................................................................(-15 to +55℃)
Operating Humidity range……………………………....................5 to 90%RH (No Condensation

PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping

carton:

Packaging of Main Unit
1) HDMI 8Ports Splitter Amplifier
2) User’s Manual.
Packaging of Accessories
3) Two  Receivers
4) Three  pieces of 5V DC Power Supply.
