P/N:AV-HST0102B

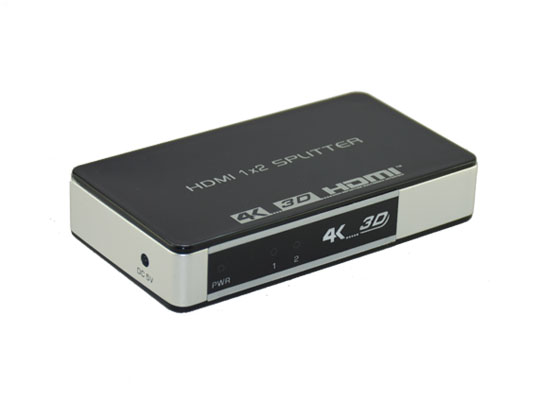

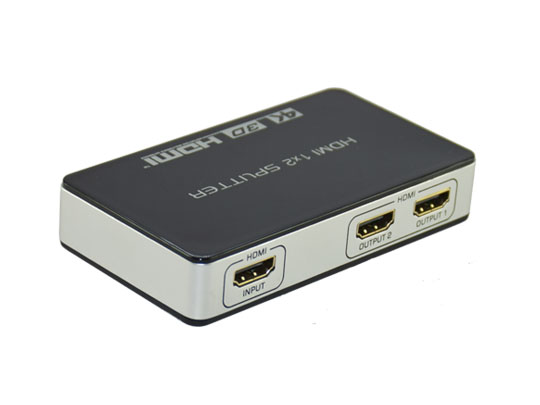

Ultra HD 3D 4K Powered V1.4 HDMI 1x2 Splitter





HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV.It can optimize your home theatre system to the best effect.HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.


Features:
Fully HDMI 1.4 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
Supports high resolutions up to 4K x 2K@30Hz, including 480i, 480p,576i, 576p, 720p, 1080i, 1080p.
Supports 12-bit Deep Full HD, Full 3D and 4K x 2K video.
Supports Standard Audio, DSD Audio and HD (HBR) Audio.
Extend the transmission distance and improve transmission signal.
Compatible with DVI through a HDMI to DVI adapter.
Supports hot plug-and-play.
LED indicate signal and power mode.

Specifications
HDMI version..............................................................HDMI 1.4, HDCP 1.3
HDMI resolution ..........24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format ....……………..24bit/deep color 30bit, 36bit, 48bit
Max band width............................................................................297MHz
Max band rate............................................................................8.91Gbps
Input/Output TMDS signal ........................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal....................................................5Volts p-p (TTL)
Max working current.......................................................................500mA
Power adapter format Input:.AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range................................................(-15 to +55℃)
Operating Humidity range………………………5 to 90%RH (No Condensation)
Dimension (L x W x H)..........................................................110x60x20mm
Weight..............................................................................................100g
Vertical Frequency Range..............................1080p@60Hz; 4K x 2K@30Hz
Support audio format.................................DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD
1080P Input cable distance...................≤15m AWG26 HDMI standard cable
1080P Output cable distance.................≤20m AWG26 HDMI standard cable
4KX2K Input cable distance.....................≤5m AWG24 HDMI standard cable
4KX2K Output cable distance.................≤10m AWG24 HDMI standard cable


Package contents
HDMI 1x2 Splitter x1
Power Adapter x1
User Manual x1
