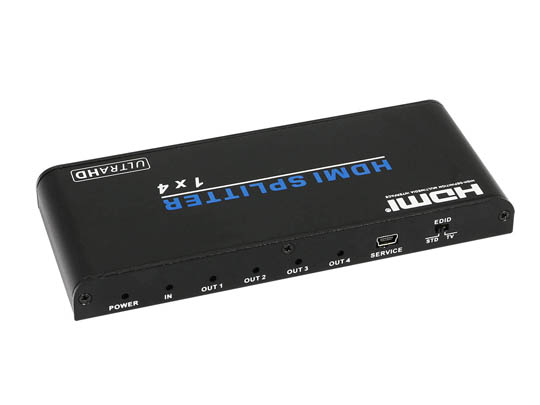

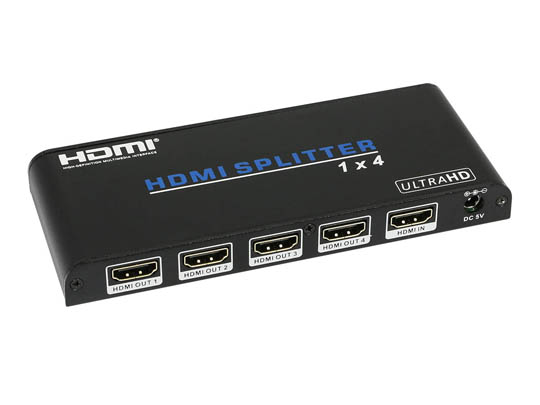

2.0v UHD HDMI Splitter 1x4 4K 10G 3D HDCP2.2
This 1 by 4 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to four HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV420) resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
Package
UHD 1x4 HDMI Splitter---------------------------------1Pcs
5V/1A DC power adaptor-------------------------------1Pcs
User manual----------------------------------------------1pcs
Feature
Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0;
Support 3D frame sequential video format up to 1080p@60;
Support high resolution VESA mode video format up to QSXGA@60Hz;
Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;
Support smart EDID control;
Specification
Video Bandwidth 300MHz/10.2 Gbps
Input Ports 1 x HDMI (Female type)
Output Ports 4 x HDMI (Female type)
Output Resolution 480i ~1080p50/60, 4Kx2K@24/30,
4k2k@60Hz with 12bit YCBCR 4:2:0,VGA~UXGA
ESD Protection Human Body model: ±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 5 V/1A DC
Dimensions 64 mm (W) × 155mm (D) × 17 mm (H)
Weight 180 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 °C~40 °C/ 32 °F~104 °F
Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 2W
|
