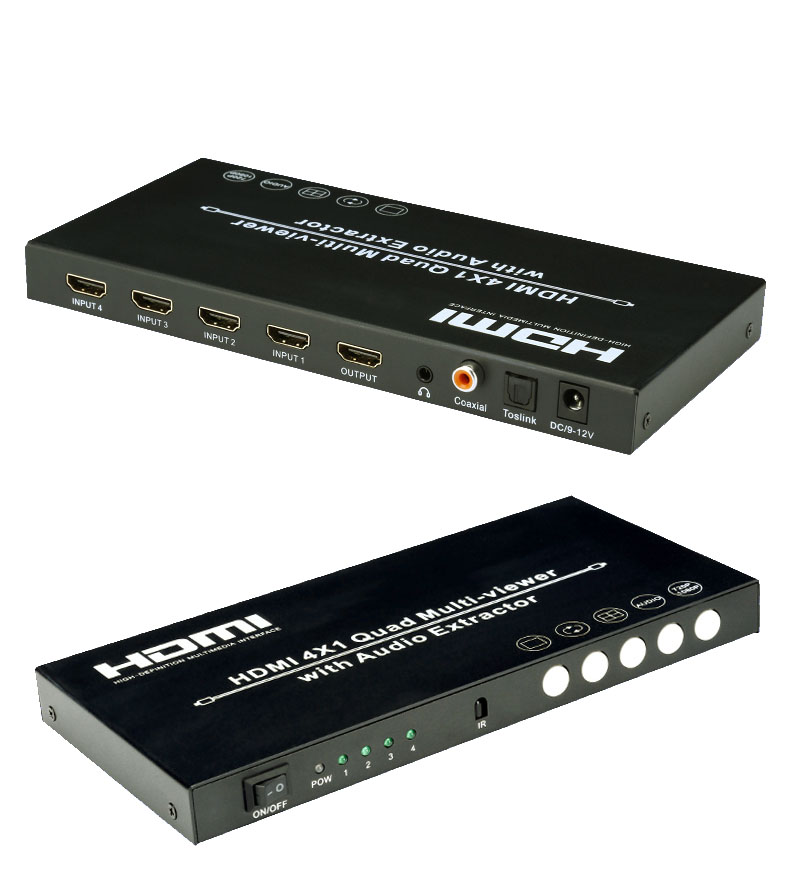

HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch.
It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously.
The control methods of the switch is flexible, it can be switched via button and IR control.
It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.
Features:
Compliant with HDMI 1.3a,HDCP 1.2.
Supports up to 1080p High Definition resolution.
Supports 720/1080p output resolution.
Supports audio Extractor.
Supports fast switching.
Supports Equalizer TMDS Output: 25MHz 225MHz TMDS clock.
Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
Inputs can be switched with the IR remote controller, also can be controlled by built-in button.
Extend the transmission distance and improve transmission signal.
Compatible with DVI through a HDMI to DVI adapter.
. Supports hot plug-and-play.
LED indicate signal and power mode.
No loss of quality.
Installs in minutes.
Specifications:
Maximum Single Link Range:1080P/60Hz
HDMI input resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
HDMI output resolution:720p/1080p/60Hz
Supports video color format:24bit/deep color 30bit, 36bit
Vertical Frequency Range:720/1080p@60Hz
Max bandwidth:225MHz
Max bandrate:6.7Gbps
1080P Input cable distance:15m AWG26 HDMI standard cable
1080P Output cable distance: 20m AWG26 HDMI standard cable
Max working current:1A Operating
Dimension (L x W x H):200x95x20mm
Weight: 460g
Package Contents:
1pc HDMI Quad Multi-Viewer
1pc 12V/2.5A DC power adaptor

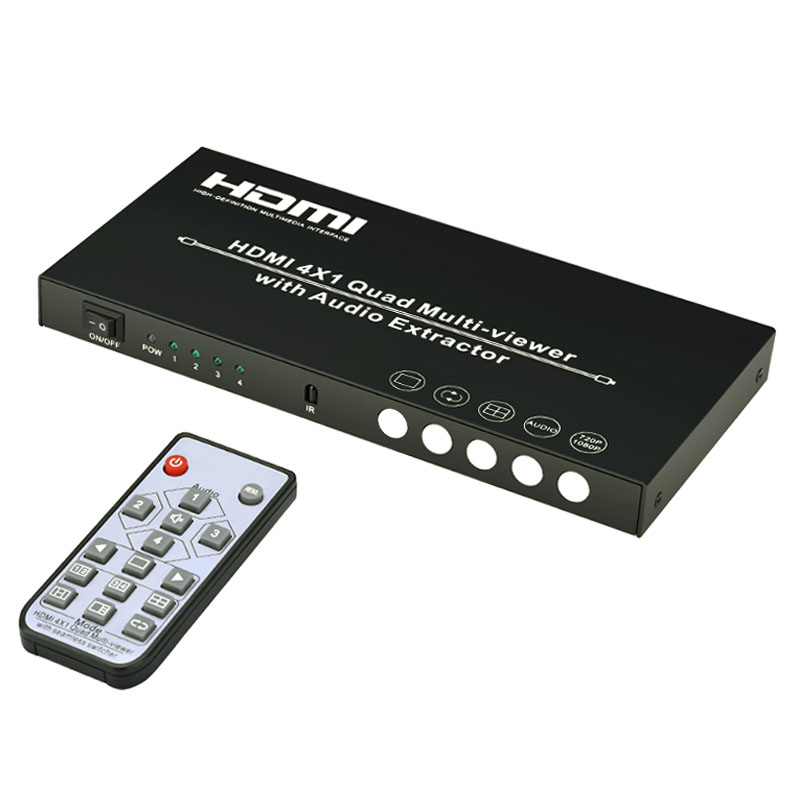

1pc Remote Control
1pc Operation Manual |
|
