1.0 DESCRIPTION

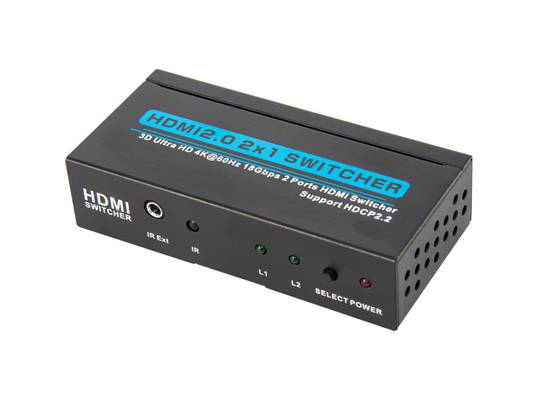

HDMI Switch is a product that can switch multi-group HDMI signals to one high definition display device such as HDTV by using manual push button. Doing so can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.
2.0 FEATURES
1. To support the simultaneous transmission of two video streams, multiple
video signals can be transmitted to the same screen;
2. Switching is done via itself automatically when signal present on the ports;
3. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
4. Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR
4:4:4/YCBCR4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0;
5. Support 3D frame sequential video format up to 1080p@60;
6. Support high resolution VESA mode video format up to QSXGA@60Hz;
7. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;
8. Supports IR and Panel button control;
9. Compatible with DVI by using HDMI TO DVI adapter;
10.Extend the transmission distance and improve transmission signal;
11.Metal casing design and overall shielding without signal interference;
12.Power supply(Please refer to technical parameter).
3.0 PACKAGING ACCESSORIES
When first unpacking your extender please check to see if the following items are included:
HDMI 2x1 switcher-------------------------------------------1PCS
5V DC Power Adaptor---------------------------------------1PCS
Remote control------------------------------------------------1PCS
IR Receiver Extension Cable -----------------------------1PCS
User Manual---------------------------------------------------1PCS
4.0 TECHNICAL PARAMETER IN DETAIL
|
Product
|
2X1 HDMI SWITCH
|
|

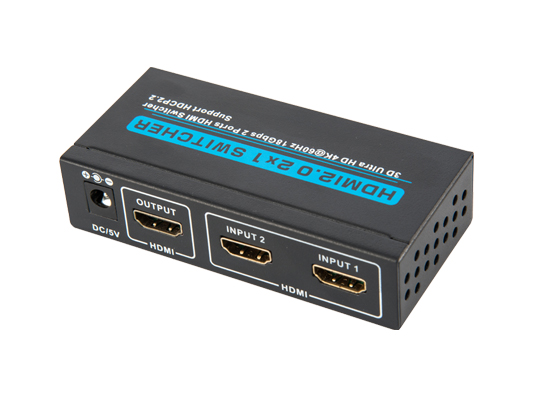

HDMI Source Input Port
|
2
|
|
Display Device Output Port
|
1
|
|
Source Port Connector
|
19 PIN HDMI(A TYPE)
|
|
Display Device Port Connector
|
19 PIN HDMI(A TYPE)
|
|
HDCP Compliant
|
YES
|
|
Source Device Selection
|
Push Button IR Remote Control
|
|
Input Video Signal
|
0.5-1.0 Volts P-P
|
|
Input DDC signal
|
5 Volts P-P(TTL)
|
|
Deep Color
|
48 bit
|
|
Single Link Range
|
3840x2160@60
|
|
HDMI Version
|
HDMI2.0
|
|
Bandwidth
|
Up to 600Mhz
|
|
Signal Speed
|
Up to 18Gbps
|
|
The length of input cable
|
≤5M
|
|
The length of output cable
|
≤5M
|
|
The cable standard
|
28AWG HDMI2.0
|
|
Vertical Frequency Range
|
60Hz
|
|
Power Consumption(max)
|
1.5 Watts
|
|
Operation Temperature
|
0℃ TO 70℃
|
|
Working Voltage
|
DC 5V
|
|
Power Adaptor
|
5V 1A
|
|
Net Weight(Kg)
|
0.13
|
|
Dimension: L×W×H(mm)
|
100×48×25
|
|
