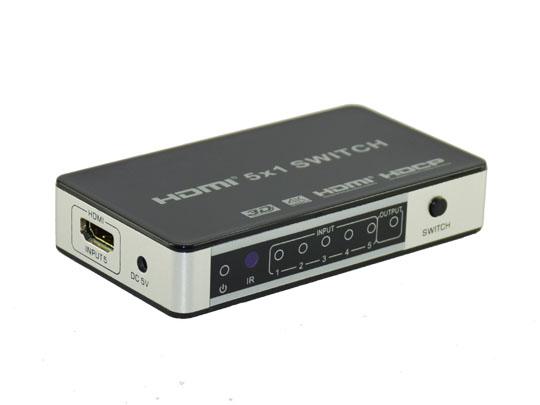

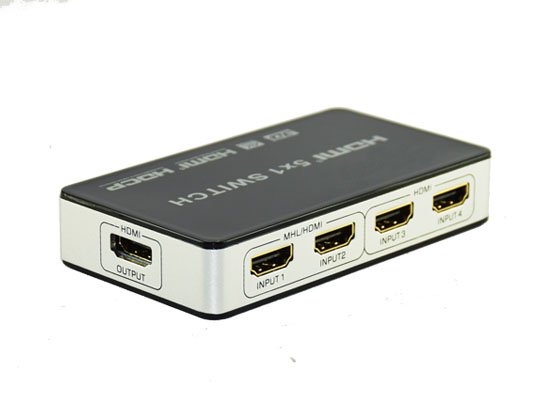

The 5x1 HDMI Switcher allows access to multiple MHL/HDMI sources, using a
single HDMI sink.The switch supports two MHL/HDMI port operates in dual mode.
5 HDMI inputs and one HDMI output port. In MHL mode, the switch supports
resolutions up to 720p @ 60Hz, 1080P @ 30Hz or at PackedPixel mode
1080p @ 60Hz. In HDMI mode, the switch supports resolutions up to
4Kx2K 24/25/30Hz. The switch also supports EDID RAM. The Switcher allows
5 HDMI devices to be switched easily through one HDMI compatible monitor or
projector,The Switcher can also be placed at the end of a long HDMI cable to
regenerate the HDMI signal.
Features:
1. Supports 2 MHL and 5 HDMI input ports with dual mode capability.
2. Supports 1 HDMI output port.
3. Compliant with MHL2.0 and HDMI 1.4b specification.
4. Support deep color 30bit, 36bit.
5. Support Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
6. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
7. Support signal retiming.
8. Supports Equalizer TMDS Output:25MHz – 297MHz TMDS clock.
9. Supports up to 297 MHz TMDS clock rate(4Kx2K) for HDMI input.
10.Supports EDID RAM.
11.Support 1080P input up to 15 metres AWG26 HDMI standard cable length, output up to 20 metres AWG26 cable length.
12.Inputs can be switched with the IR remote control，also can be controlled by button.
13.No loss of quality.
14.Installs in minutes.
Specifications:
Maximum Single Link Range......................................24/25/30fps/4Kx2K
HDMI resolution.......24/50/60fps/1080p/1080i/720p/576p/576i/480p/480i
Support video color format……...................24bit/deep color 30bit,36bit
Vertical Frequency Range.....................60Hz @ 1080p; 30Hz @ 4K x 2K
Support audio format…...................... DTS-HD/Dolby-trueHD/LPCM7.1
/DTS/Dolby-AC3/DSD
Max bandwidth……................................................................297MHz
Max band rate……...............................................................8.91Gbps
Input/Output TMDS signal …….........................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal …….....................................5Volts p-p (TTL)
1080P Input cable distance……...... 15m AWG26 HDMI standard cable
1080P Output cable distance…….....≤20m AWG26 HDMI standard cable
4KX2K Input cable distance……........≤5m AWG24 HDMI standard cable
4KX2K Output cable distance…….....≤10m AWG24 HDMI standard cable
Max working current……...........................................................350mA
Operating Temperaturer……...........................................(-15 to +55℃)
Operating Humidity range……................5 to 90%RH (No Condensation)
Dimension (L x W x H) ..........................110x60x20 (mm)
Weight…….................................................................................105g
Packaging content:
1. HDMI 5×1 Unit x1
2. Remote controller x1
3. User Manual x1
4. DC 5V Power Adapter x1
5. MHL to HDMI Cable x1
|
